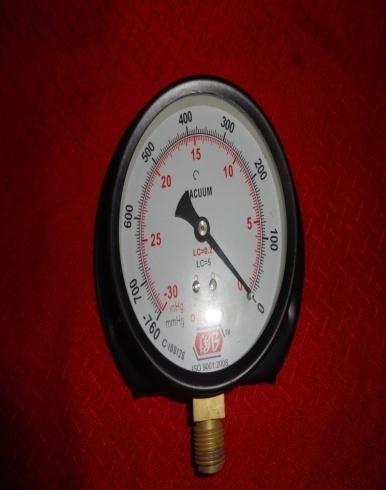

General Purpose Gauge

General Purpose Gauge
General Purpose Gauge
Product Code : 30
Brand Name : FGB
Price And Quantity
  • Minimum Order Quantity
  • 600
  • Unit of Measure
  • Unit/Units
Product Description

Our organization specializes in manufacturing and supplying an impeccable range of General Purpose Gauge which is ideally used for air, oil gases and liquids and for general industrial application such as boilers, compressors & chemicals plants. Designed by using the best quality materials, these gauges are offered in various specifications and models as per the clients’ requirements. For ensuring their longer service life, our team of quality inspectors duly checks the quality of this General Purpose Gauge on various parameters.

Features



  • High accuracy
  • Efficient working
  • Rugged construction

General Purpose Gauge

These gauges are suitable for Air, Oil gases and liquids which are not corrosive to copper, oil and steel and for General Industrial Application such as boilers, Pumps, compressors, Machineries, Process & chemicals Plants. Case and Bezel is drawn steel back finish and available in Brass bottom, Back Connection, Direct Mounting, Surface Mounting and flush panel mounting.

  1. Ms casing dial size:- 40mm, 50mm, 63mm,75mm,100mm,150mm, 200mm, 250mm.

  2. Aluminium Or SS casing:- dial size 200mm, 250mm.

  3. Accuracy:- ±2% Temp : 85% C. As per class II of Is 3624 of 1987

  4. Bourdon tube:- brass, phosphor bronze, stainless steel.

  5. Movement :- brass/ stainless steel

  6. Socket material:- brass/ stainless steel

  7. Case:- MS. SS 304, PLASTIC

  8. Mounting:- Direct bottom, back, panel, bracket , panel with bracket.

  9. Thread:-  (M) & other.

  10. Joints:- brass bourdon with soldered, SS bourdon tube tip & socket with Argon arc & silver branze.

  11. Range:- vaccum, 1Kg/cm2 to 1400kg/cm2


Trade Information
  • Payment Terms
  • Cheque, Others
  • Supply Ability
  • 15000 Per Month
  • Delivery Time
  • 7 Days
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Carton Boxes
  • Main Domestic Market
  • All India
